Research – Design & Installation of hydroponic systems with different substrates
Fog & Humidifier Systems
Research – Design & Installation of Spraying & Humidifier Systems:
Fogging/humidifier, high pressure fog and spraying booms systems for every width and crop.
Water Tanks
Water tanks with a capacity of 4m³ to 1600m³, but also other sizes available on request. They are placed on flat ground with concrete of not less than 10 cm thick and 60cm larger in diameter than the tank. A wide variety of inner layers from various materials, some of which are also suitable for drinking water.

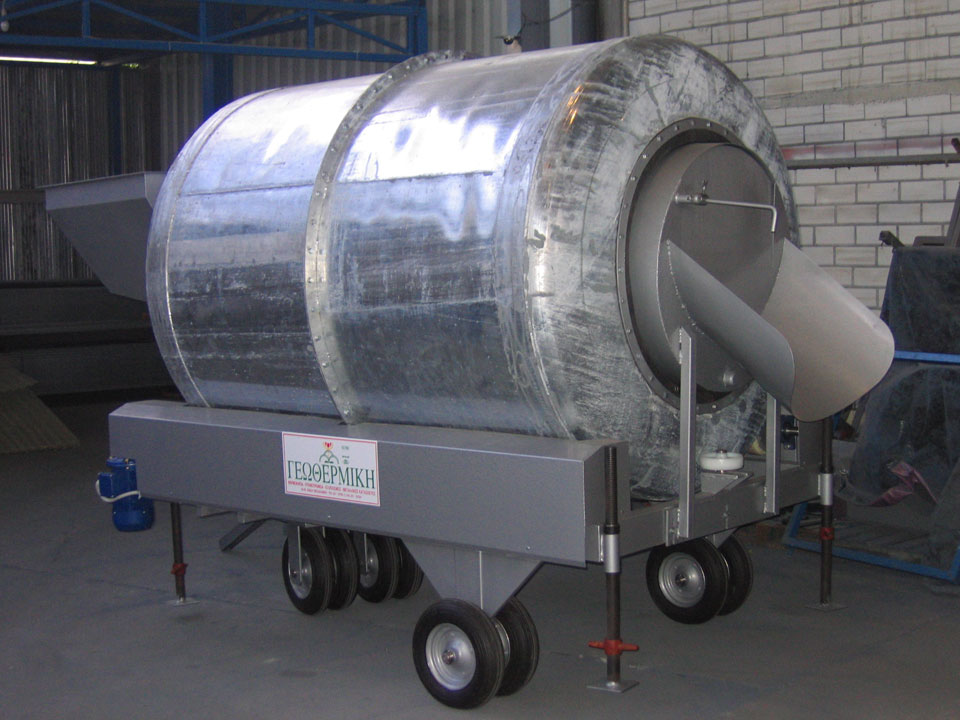

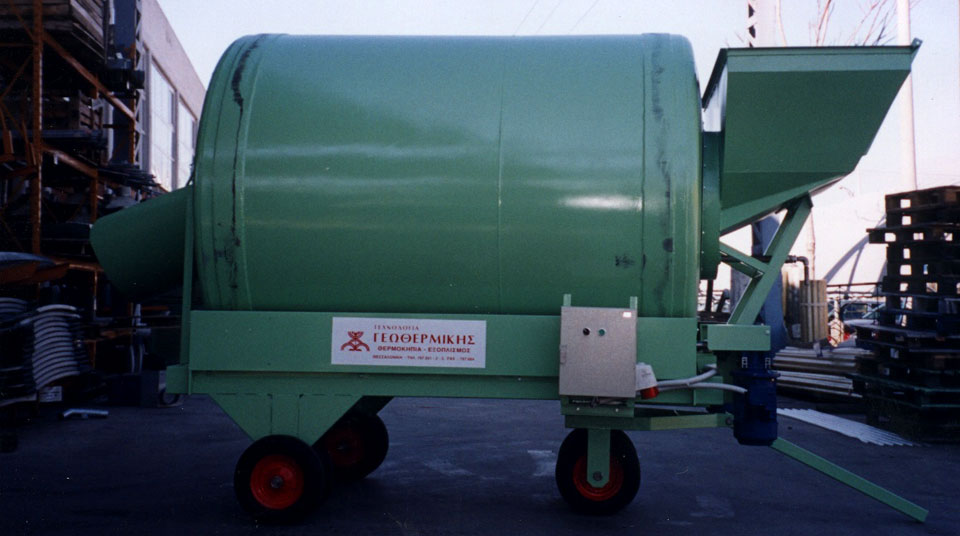

Soil Blenders
Technical characteristics of blenders
Dimensions: Height: 2200mm – Length: 3600mm
Container capacity: 4 m3

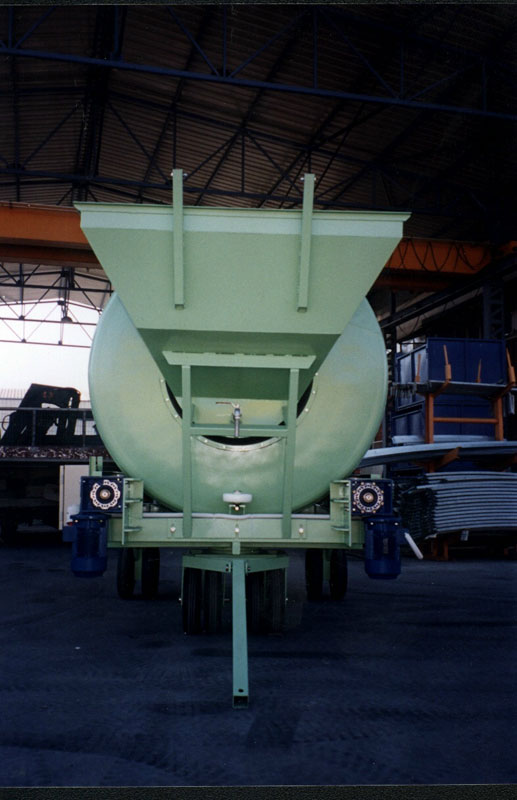

Movement: 2 Drives 2HΡ, 380V

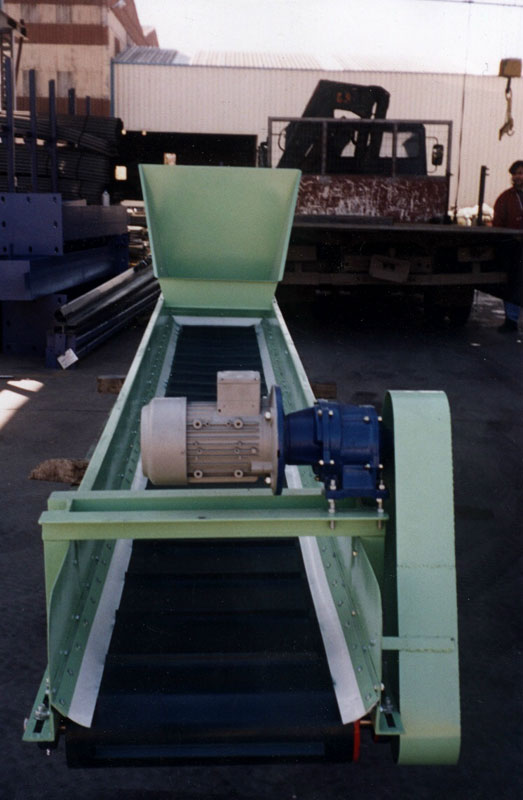

Technical characteristics of conveyor belt
Dimensions: Width: 800mm – Length: 4500mm
Movement: 1 Drive 0,75 HP, 82 rpm
Belt from PVC with drive support
Accessories
- Covering: if its installed outdoor
- Break turf pellet system
- Electric board

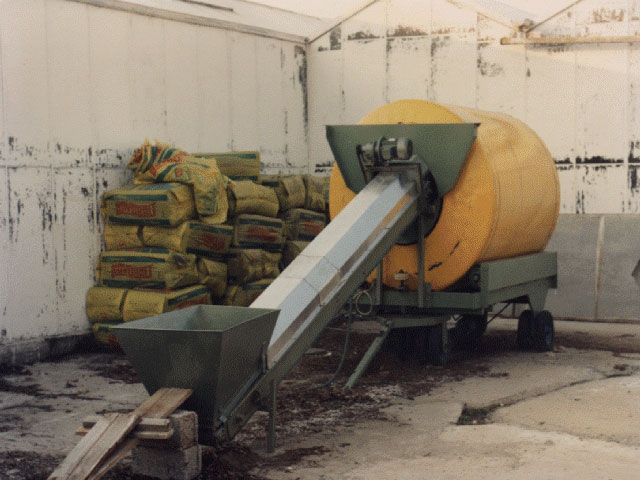

– The supply of the soil blender is made either mechanically with conveyor belt or manually.
– With special system of water spraying for ideal humidity in the blending outcome.

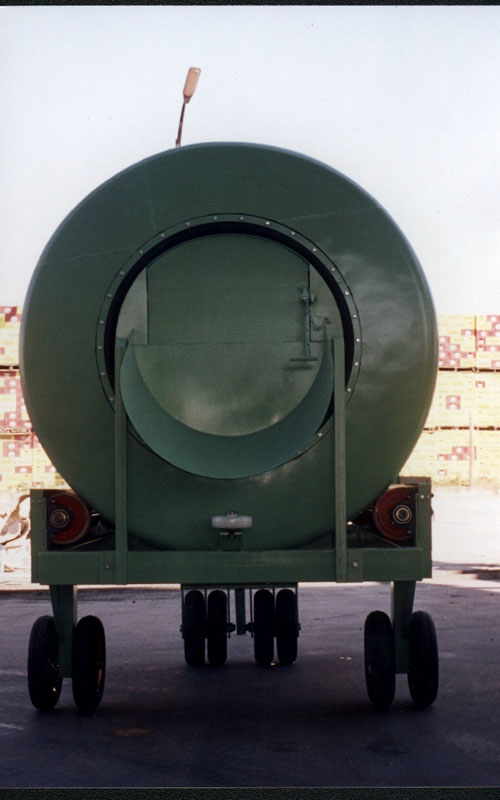

– Delivered with wheels for easy transportation.
– At the end of the operation the soul blender empties mechanically.
